$8,299.00

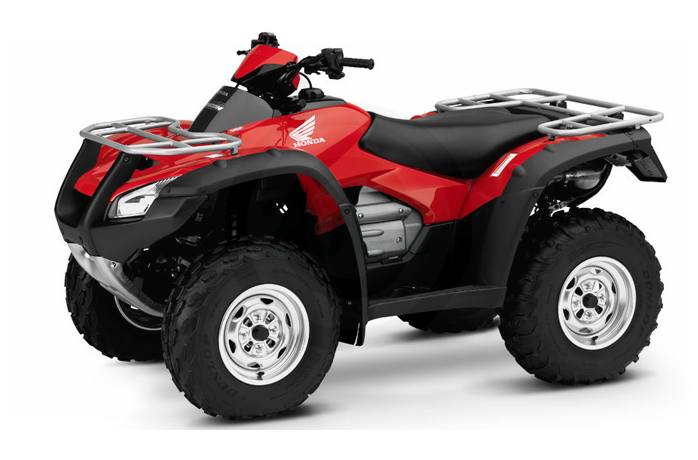

2009 Honda FourTrax Rincon
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    ENGINE
    • Engine Type: 675 cc Liquid-Cooled OHV Semi-Dry-Sump Longitudinally Mounted Single-Cylinder Four-Stroke
    • Bore x Stroke: 102 x 82.6 mm
    • Induction: Electronic Fuel Injection (PGM-FI), 40 mm Throttle Bodies
    • Ignition: Full-Transistorized Type With Electronic Advance
    • Starter: Electic With Auxiliary Recoil
    DRIVE TRAIN
    • Transmission: Automatic With Hydraulic Torque Converter, Three Forward Gears, Reverse, And Electronic Controls
    • Driveline: Direct Front And Rear Drive-Shafts With Torque-Sesitive Front Differential
    CHASSIS/SUSPENSION/BRAKES
    • Front Suspension: Independent Double-Wishbone, 6.9 in. Travel
    • Rear Suspension: Independent Double-Wishbone, 8 in. Travel
    • Front Brakes: Dual Hydraulic 180 mm Disc
    • Rear Brakes: Single Hydraulic Disc
    • Front Tires: 25x8-12 Radial
    • Rear Tires: 25x10-12 Radial
    DIMENSIONS
    • Length: 83.2 in.
    • Width: 46.8 in.
    • Height: 47.5 in.
    • Wheelbase: 50.8 in.
    • Seat Height: 34.5 in.
    • Ground Clearance: 10 in.
    • Turning Radius: 10.8 ft.
    • Curb Weight: 648 lbs.
    • Fuel Capacity: 4.3 gal. (Including Reserve)
    • Available Colors: Red, Olive, Blue, Camo
    FACTORY WARRANTY INFORMATION
    • Warranty: Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Specifications

    Engine
    Engine Type OHV Semi-Dry-Sump Longitudinally Mounted Four-Stroke
    Displacement 675 cc
    Bore x Stroke 102 x 82.6 mm
    Cylinders Single-Cylinder
    Engine Cooling Liquid-Cooled
    Fuel System Electronic Fuel Injection (PGM-FI), 40 mm Throttle Bodies
    Starting System Ignition: Full-Transistorized Type With Electronic Advance; Starter: Electic With Auxiliary Recoil
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.9 in.
    Front Brake Type Dual Hydraulic 180 mm Disc
    Front Tires 25x8-12 Radial
    Rear Travel 8 in.
    Rear Suspension Independent Double-Wishbone
    Rear Brake Type Single Hydraulic Disc
    Rear Tires 25x10-12 Radial
    Dimensions/Capacities
    Dry Weight 648 lbs.
    Fuel Capacity 4.3 gal. (Including Reserve)
    Ground Clearance 10 in.
    Machine Dimensions (LxWxH) 83.2 x 46.8 x 47.5 in.
    Wheelbase 50.8 in.
    Drive Train
    Drive Train Direct Front And Rear Drive-Shafts With Torque-Sesitive Front Differential
    Final Drive Direct front and rear drive-shafts with torque-sensitive front differential
    Transmission Automatic With Hydraulic Torque Converter, Three Forward Gears, Reverse, And Electronic Controls
    General
    Colors Red, Olive, Blue, Camo
    Warranty Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model FourTrax Rincon
    Style Utility
    MSRP* $8,299.00
    Chassis
    Front Suspension Independent Double-Wishbone
    Front Travel 6.9 in.
    Front Brake Type Dual Hydraulic 180 mm Disc
    Front Tires 25x8-12 Radial
    Rear Suspension Independent Double-Wishbone
    Rear Travel 8 in.
    Rear Brake Type Single Hydraulic Disc
    Rear Tires 25x10-12 Radial
    Frame
    Dimensions/Capacities
    Dry Weight 648 lbs.
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 4.3 gal. (Including Reserve)
    Ground Clearance 10 in.
    Machine Dimensions (LxWxH) 83.2 x 46.8 x 47.5 in.
    Wheelbase 50.8 in.
    Drive Train
    Drive Train Direct Front And Rear Drive-Shafts With Torque-Sesitive Front Differential
    Final Drive Direct front and rear drive-shafts with torque-sensitive front differential
    Transmission Automatic With Hydraulic Torque Converter, Three Forward Gears, Reverse, And Electronic Controls
    Engine
    Engine Type OHV Semi-Dry-Sump Longitudinally Mounted Four-Stroke
    Displacement 675 cc
    Bore x Stroke 102 x 82.6 mm
    Cylinders Single-Cylinder
    Engine Cooling Liquid-Cooled
    Fuel System Electronic Fuel Injection (PGM-FI), 40 mm Throttle Bodies
    Starting System Ignition: Full-Transistorized Type With Electronic Advance; Starter: Electic With Auxiliary Recoil
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, Olive, Blue, Camo
    Warranty Transferable, Unlimited Mileage Limited Warranty, Extended Coverage Available With A Honda Protection Plan

    Current Promotions

    There are currently no promotions available for this product.
